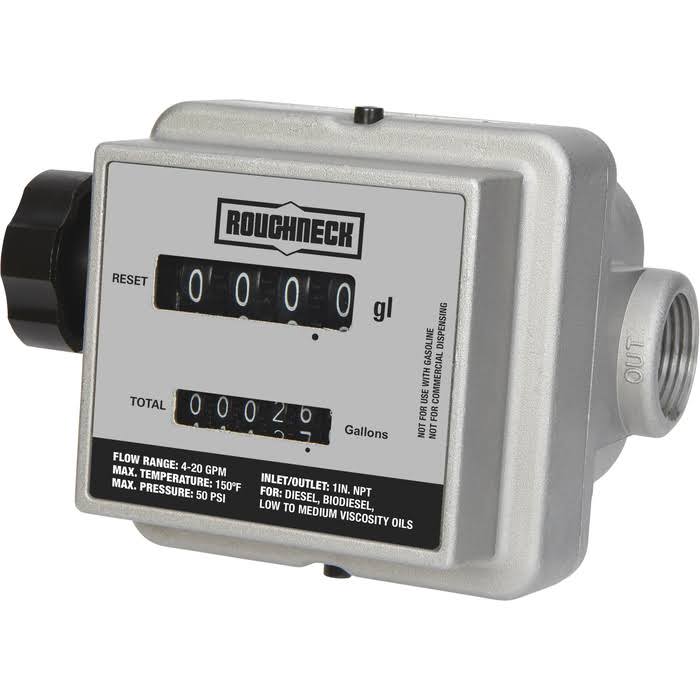

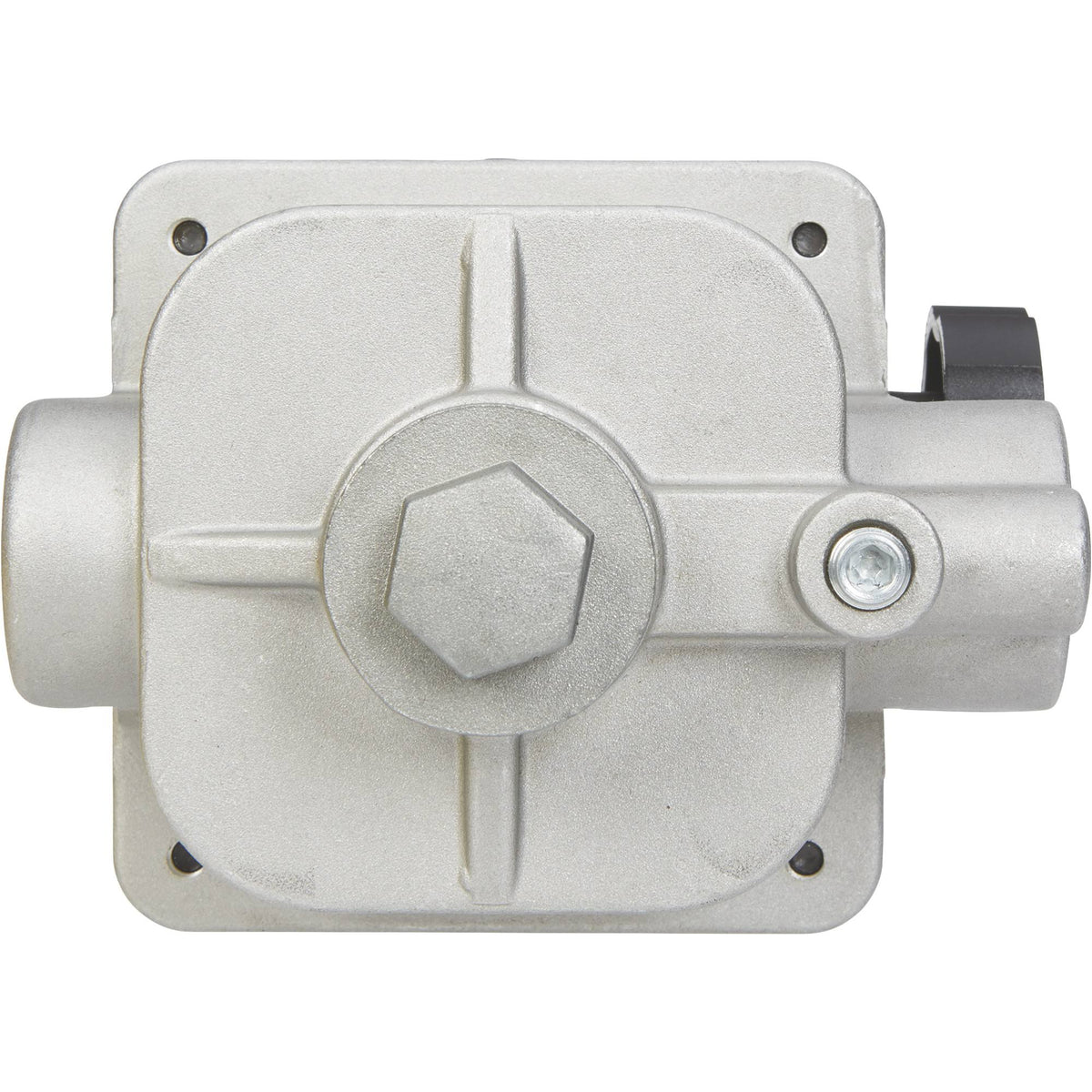

Mechanical Fuel Meter - 4-20 GPM, 1inch Inlet/Outlet C13815
Sale price
$15.99
Regular price $65.65
Skip to product information
The Roughneck Mechanical Fuel Meter features a 3 port design that can be installed in-line or at a 90 angle. Its nutating disc mechanism offers a high tolerance to fuel contamination. Strong aluminum die-cast construction delivers years of service. , Dimensions L x W x H in. 5 5/8 x 4 1/4 x 5 1/8, Flow GPM 4-20, Inlet Port in. 1, LCD Display No, mechanical dial, Max. PSI 50, Operating PSI 50, Outlet Port in. 1, Temperature Capacity F 14-150. 4-20 GPM capability 1in. NPT inlet/outlet Accurate to 2 Compact design for easy installation 3 port design can be installed in-line or at 90 angle Nutating disc mechanism has high tolerance to fuel contamination 50 PSI max. working pressure Can be used with diesel, biodiesel, and light oils Not for use with gasoline 150F max. temperature Strong aluminum die-cast construction 4 digit max. resettable batch total 999.9 gallons For use with electric fuel pumps or gravity flow with a minimum gravity head of 4ft. Model Number: FM-100G/0-1/N. Age Group: adult.
Mechanical Fuel Meter - 4-20 GPM, 1inch Inlet/Outlet C13815
Sale price
$15.99
Regular price $65.65
Shipping calculated at checkout.
