Storefront Door Mortise Lock Hook Deadbolt & Cylinder Combo, Aluminum, Pack of 2 Y1130
Sale price
$13.90
Regular price $64.49
Skip to product information

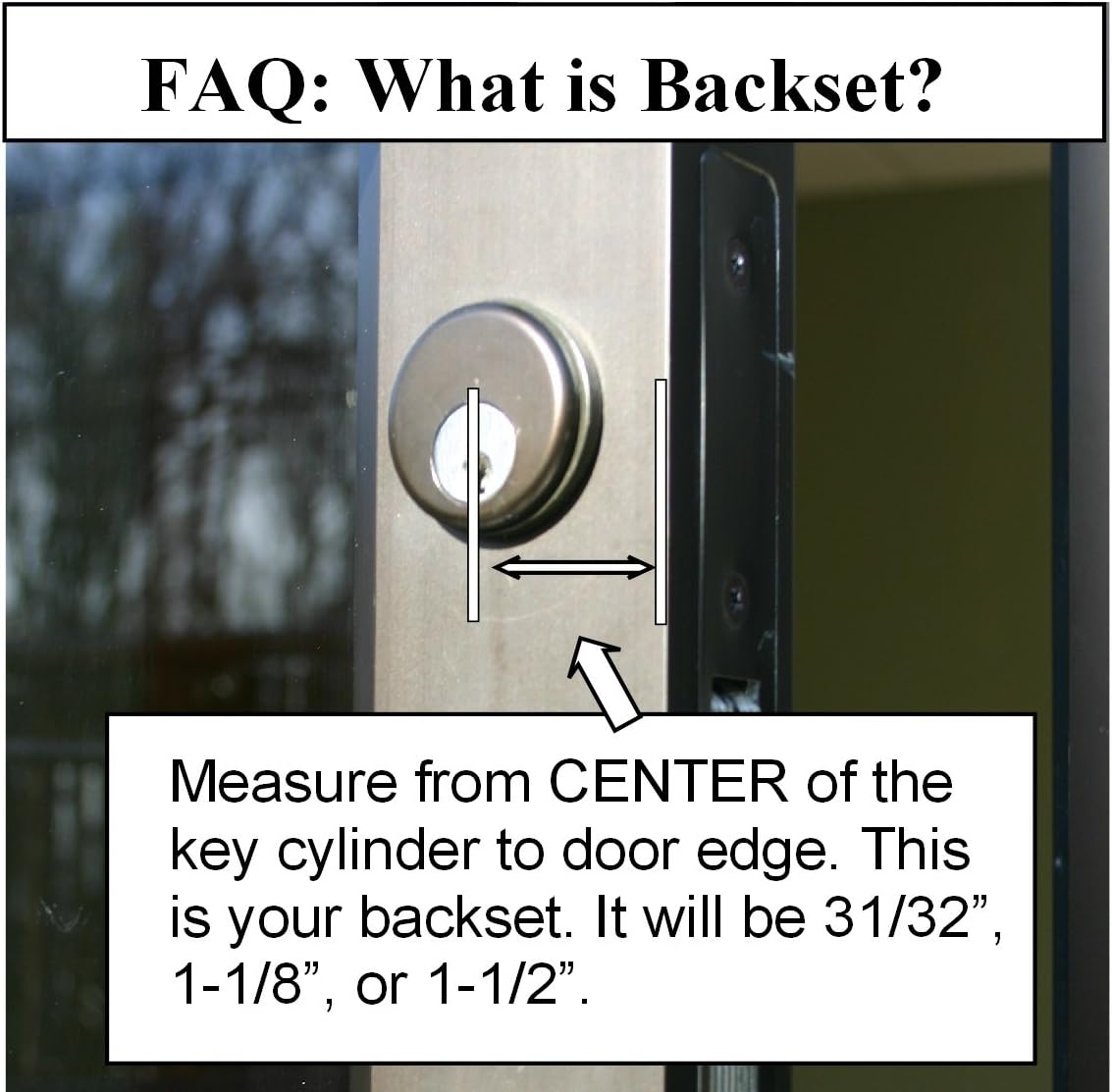

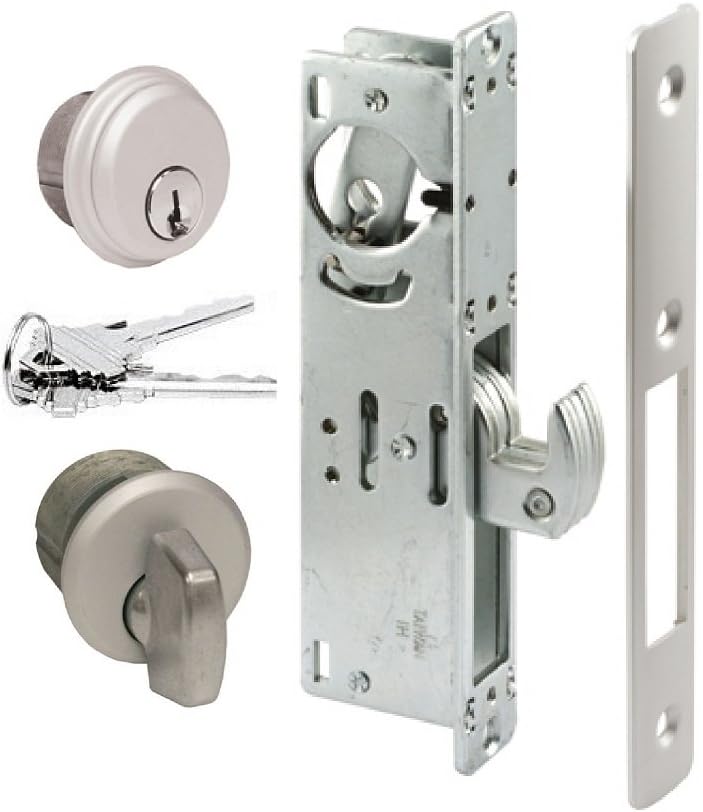

Choose 31/32" or 1-1/8" Backset (see pictures)Backset: The distance between the edge of the door and Center of the key cylinder.Five-ply laminated steel bolt with concealed hardened steel pin provides maximum securityIncludes Hook bolt Lock, Faceplate, 1 Thumbturn, 1 Lock Cylinder & 2 KeysPacific Doorware Brand with Adams Rite Style Cam. For commercial aluminum storefront doors.
Storefront Door Mortise Lock Hook Deadbolt & Cylinder Combo, Aluminum, Pack of 2 Y1130
Sale price
$13.90
Regular price $64.49
Shipping calculated at checkout.
Steel or Aluminum Frame Entry Door Mortise Deadbolt Lock Set- Huge five-ply laminated steel bolt with concealed hardened steel pin provides maximum security. Designed for aluminum or steel framed storefront entry doors. Specifications: Backset: 31/32", 1-1/8" . Face Plate: Width - 1", Length - 6-7/8"Case Dimensions: Width - 7/8", Length - 6", Depth (specific to backset) - 1.63" through 1.78"Deadbolt: Width - 5/8", Throw - 1-3/8"Mortise Deadbolt Dimensions. Includes cylinder set screws, trim, and mounting screws. Note: If your lock cylinder is not threading in, try loosening the lock body mounting screws.
