White Paint Meter with LCD Backlight V819288
White Paint Meter with LCD Backlight V819288

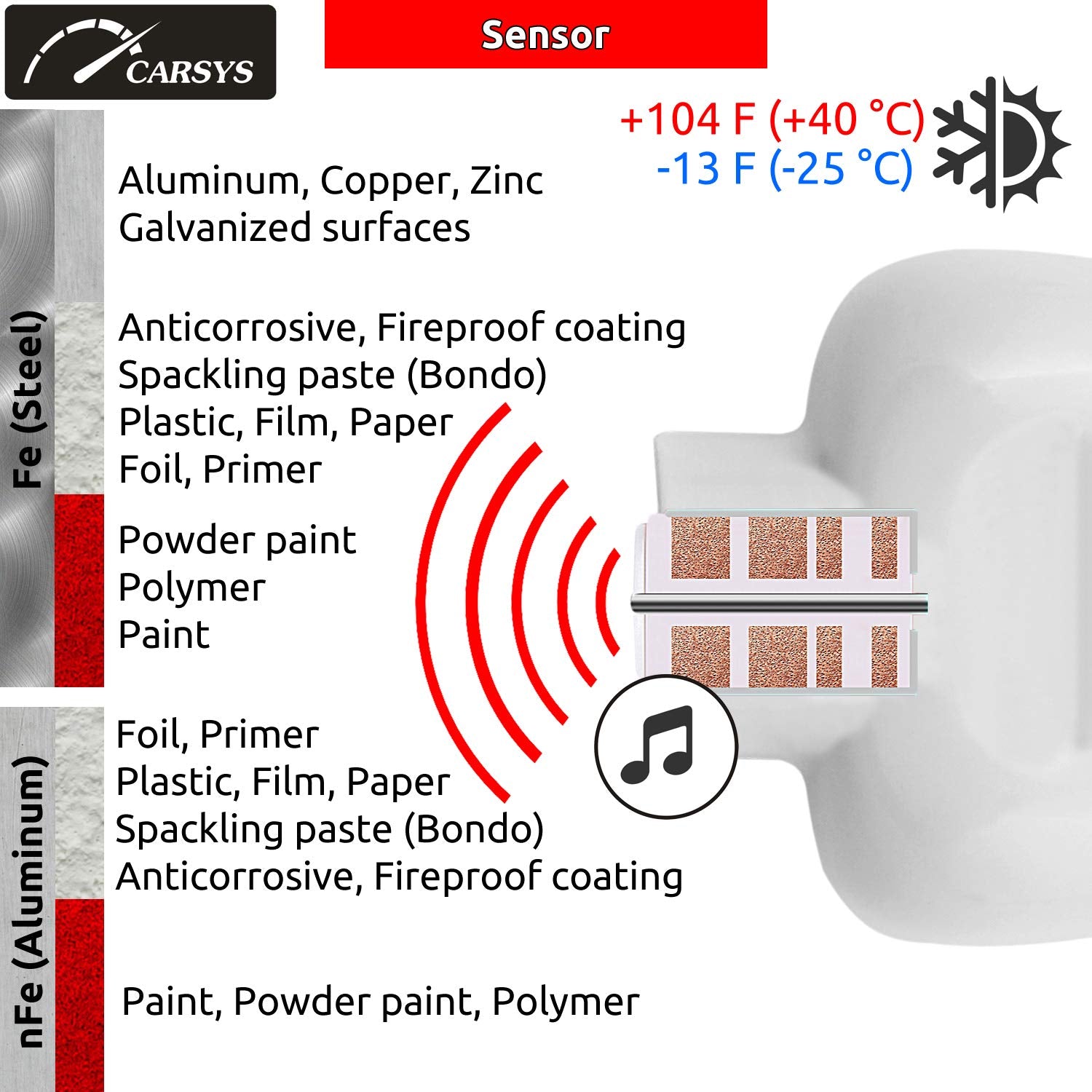

Sensor - Wide range, Accurate Fe/nFe sensor designed specifically for DPM-816 by CARSYS. Measuring range up to 137 mils. Resolution up to 0,01 mils. Accuracy up to 1%+0,04 mils

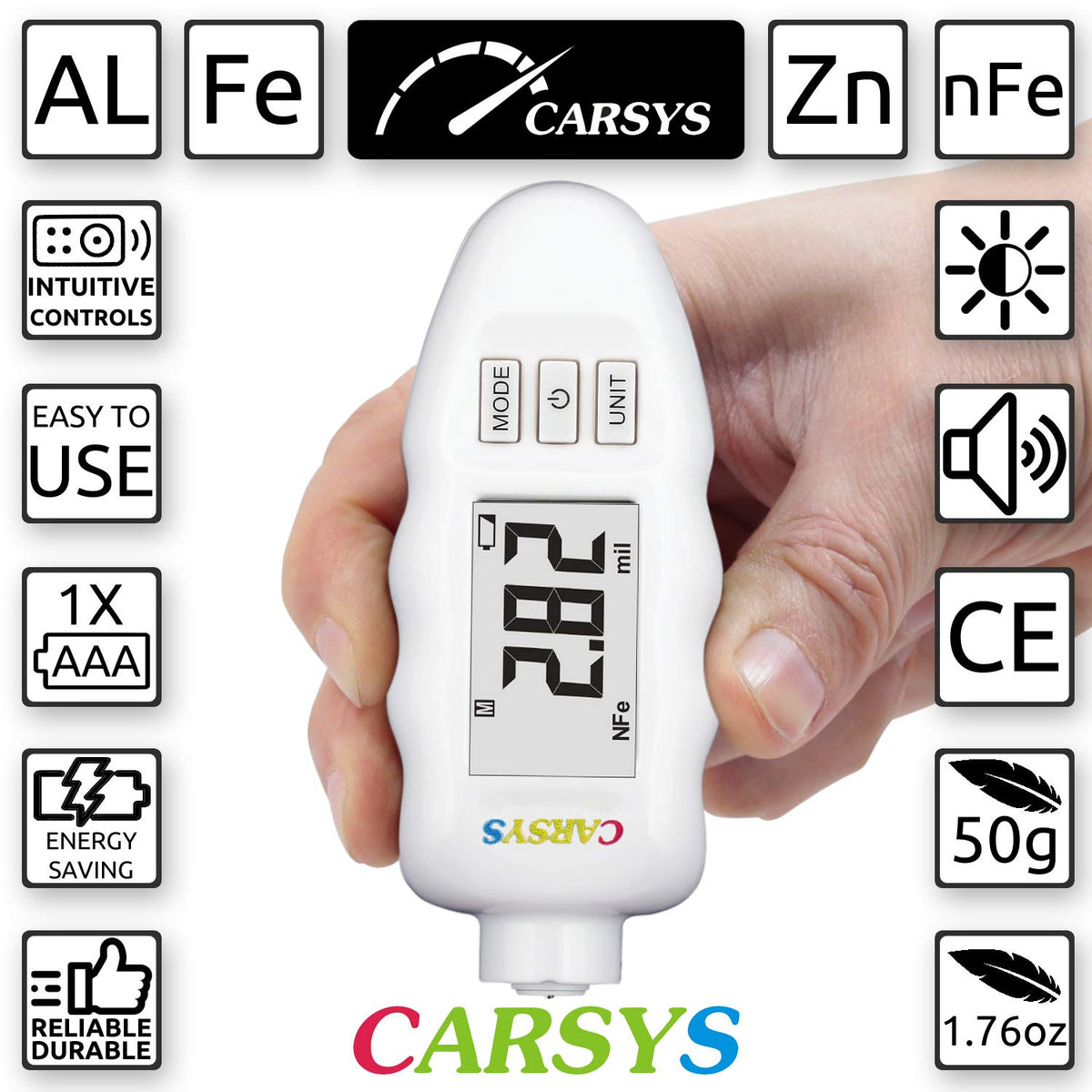

Outstanding User Experience - Smart software Allows you to: Measure Accurately on concave, curved, smooth and thin surfaces; Auto recognition for ferrous and non-ferrous substrates (special sound signals for each); Measure in Single or Continuous mode; Easily switch measuring units between mils / μm / mm; Calibrate your device in just 5 seconds; Make up to 40 measurements per minute

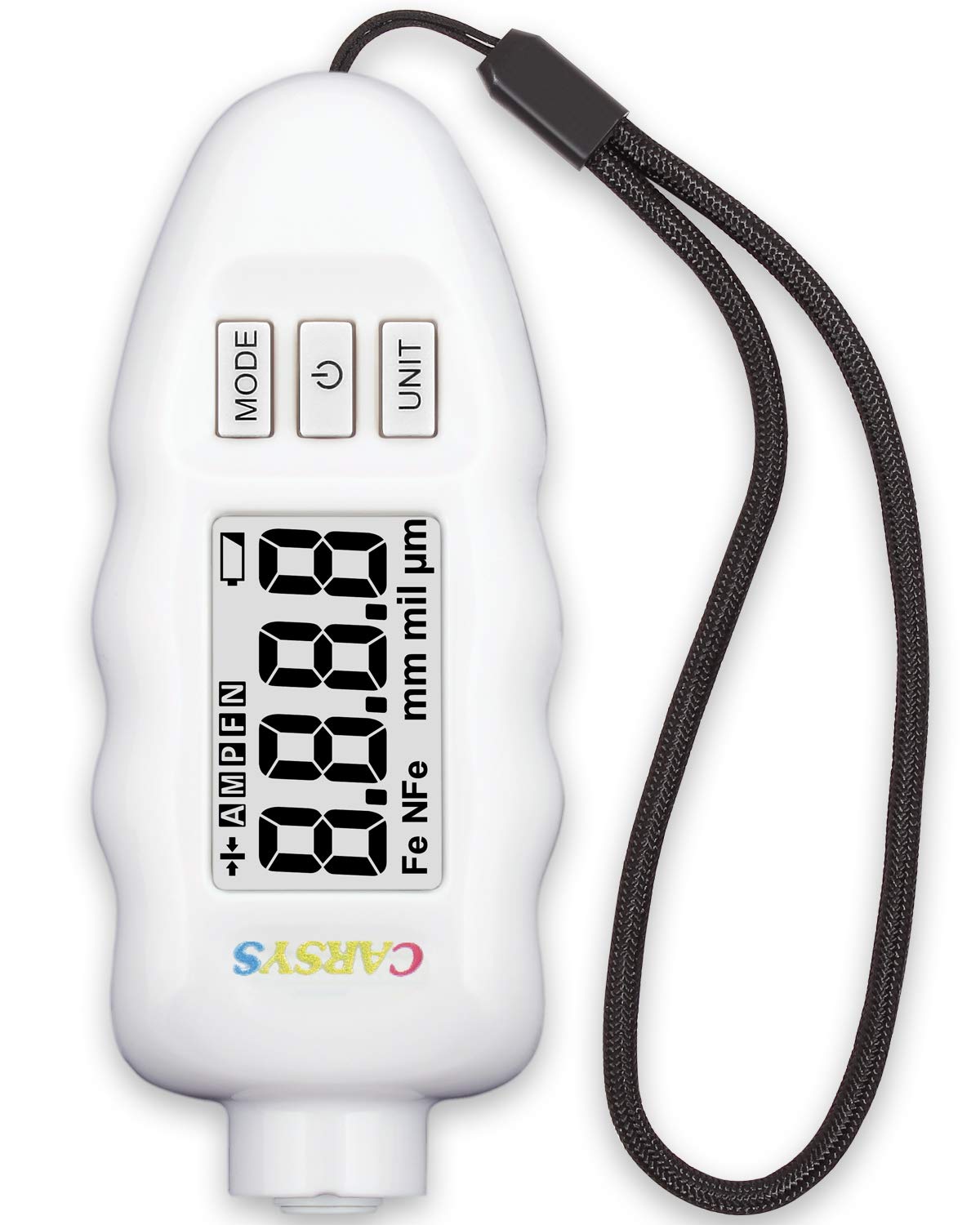

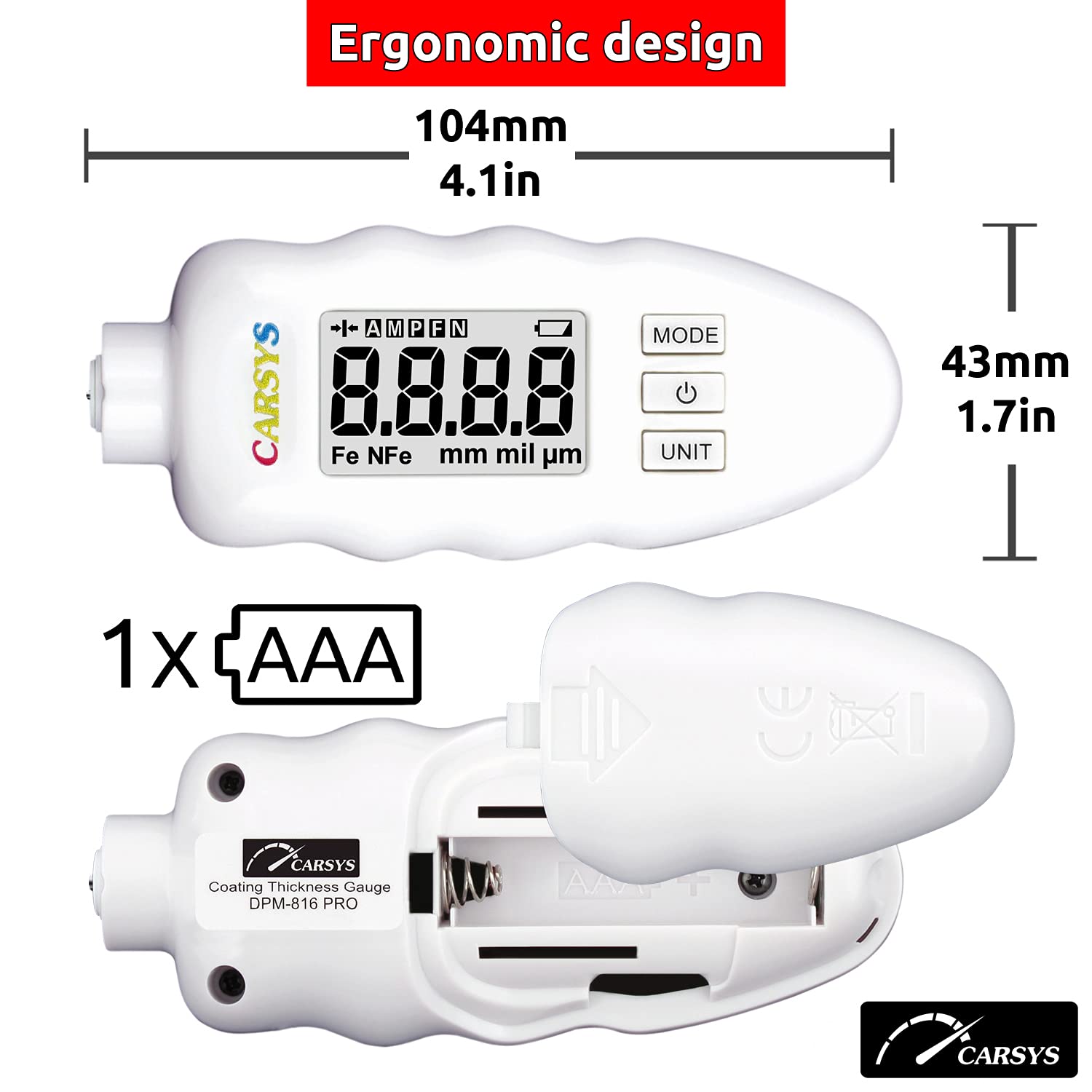

Nice & Easy to use - The device is so simple that even a child can figure it out: Wide and Informative LСD display shows only the necessary information; Thanks to its ergonomic design, the device rests perfectly in your hand - It’s really convenient to measure with; How to get confused with just three buttons? No way! - Large buttons provide intuitive controls and are great for gloved hands
The device works perfectly in frost -13 F, snow, rain and heat. Temperature range -13 to 104 F (-25 to 40 С)

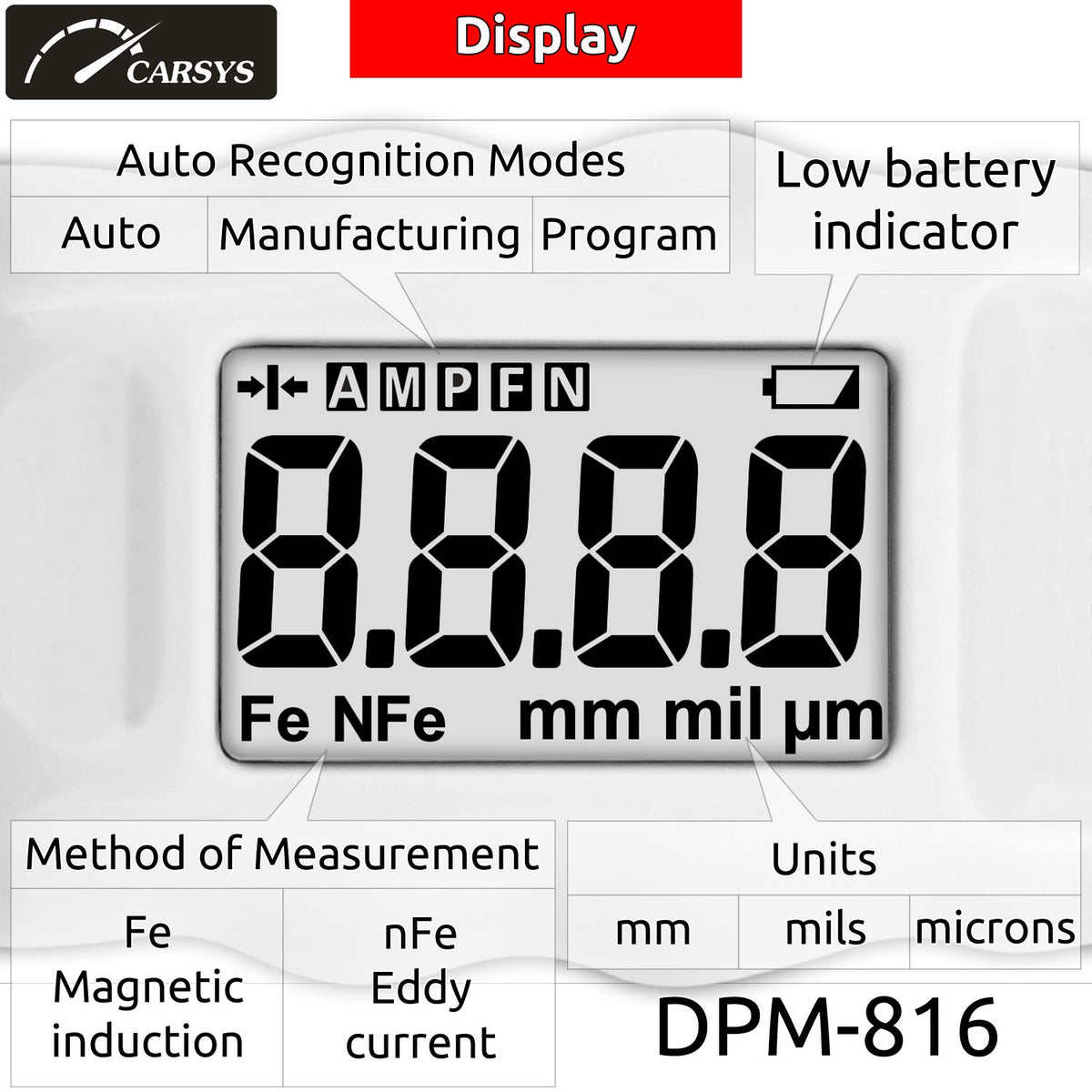

The device has 5 exclusive modes and a wide range of uses. [A]-Auto: Perfect for simple checking the Car Body. No additional settings required. Auto measurement method. [M]-Manufacturing: Higher resolution for thick coatings. Great for factories, paint shops and workshops. Auto measurement method. [P]-Program: Used for custom calibration at 6 points. For special cases when the default calibration is not suitable. Auto measurement method. [Fe] Magnetic induction method. [nFe] Eddy current method
The device DPM-816 is used to measure thickness of various non-metallic coatings (paint, primer etc) over metallic base (steel, iron, alloys, aluminum etc).

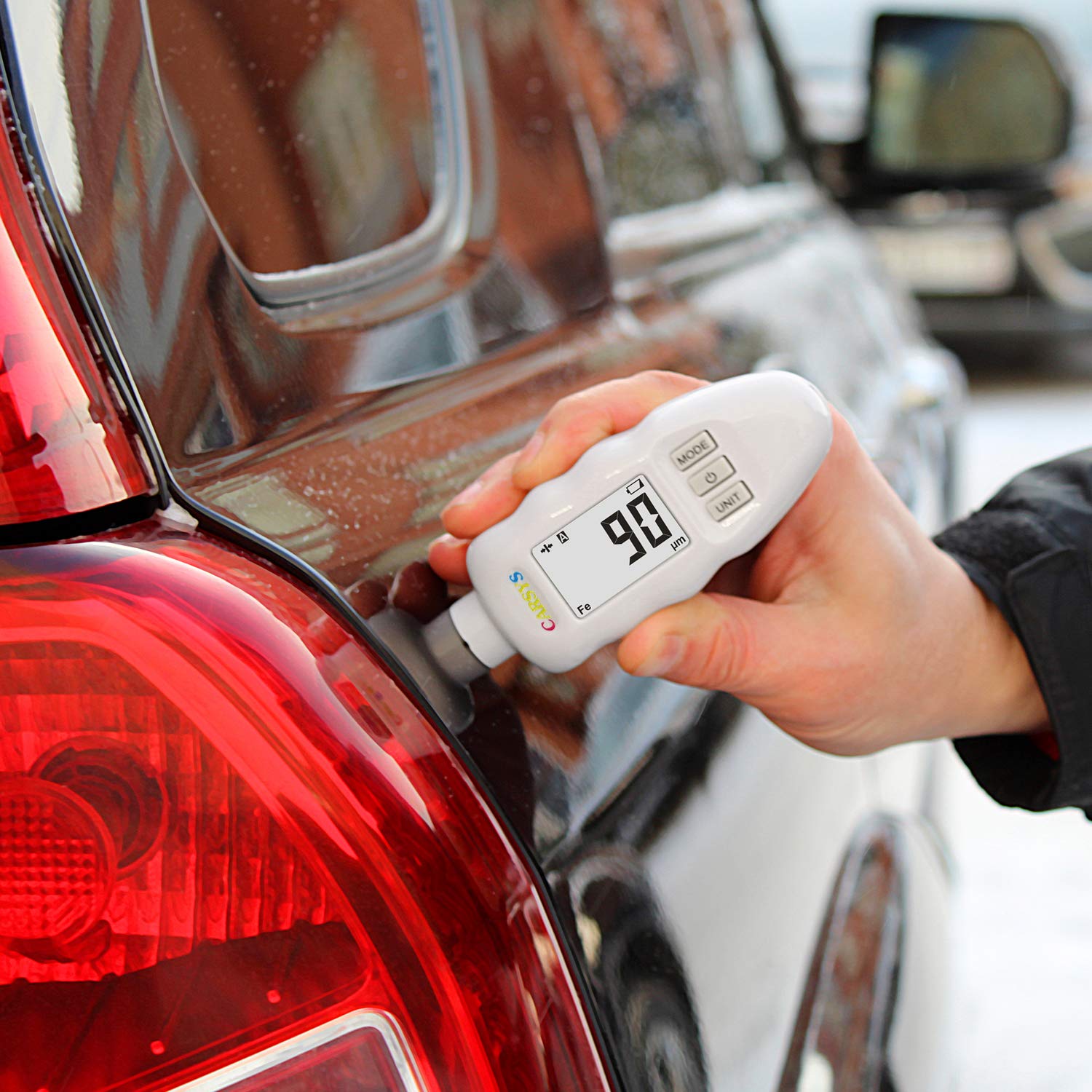

An example of case for use would be to measure paint layer thickness of car body panels.
The device has 5 exclusive modes and has a wide range of uses:
Auto:
Fast&Easy mode, automatically determines the measurement method. Perfect for simple checking the car body. No additional settings required.
Manufacturing:
Automatically determines the measurement method. Higher resolution for thick coatings. Great for factories, paint shops and workshops.
Program:
Automatically determines the measurement method. Used for custom calibration at 6 points. For special cases when the default calibration is not suitable. Advanced mode.
Fe - Magnetic induction method:
Created for the most accurate measurement of non-magnetic coatings (paint, polymer coatings, powder coatings, electroplating) on magnetic metals (steel, iron). Has the function of continuous measurement. * Manual selection of measurement method
nFe - Eddy current method:
Created specifically for the most accurate measurement of dielectric coatings (paint, powder paint, polymer, plastic) on non-magnetic (non-ferrous) metals (aluminum, zinc, copper). Has the function of continuous measurement. * Manual selection of measurement method.

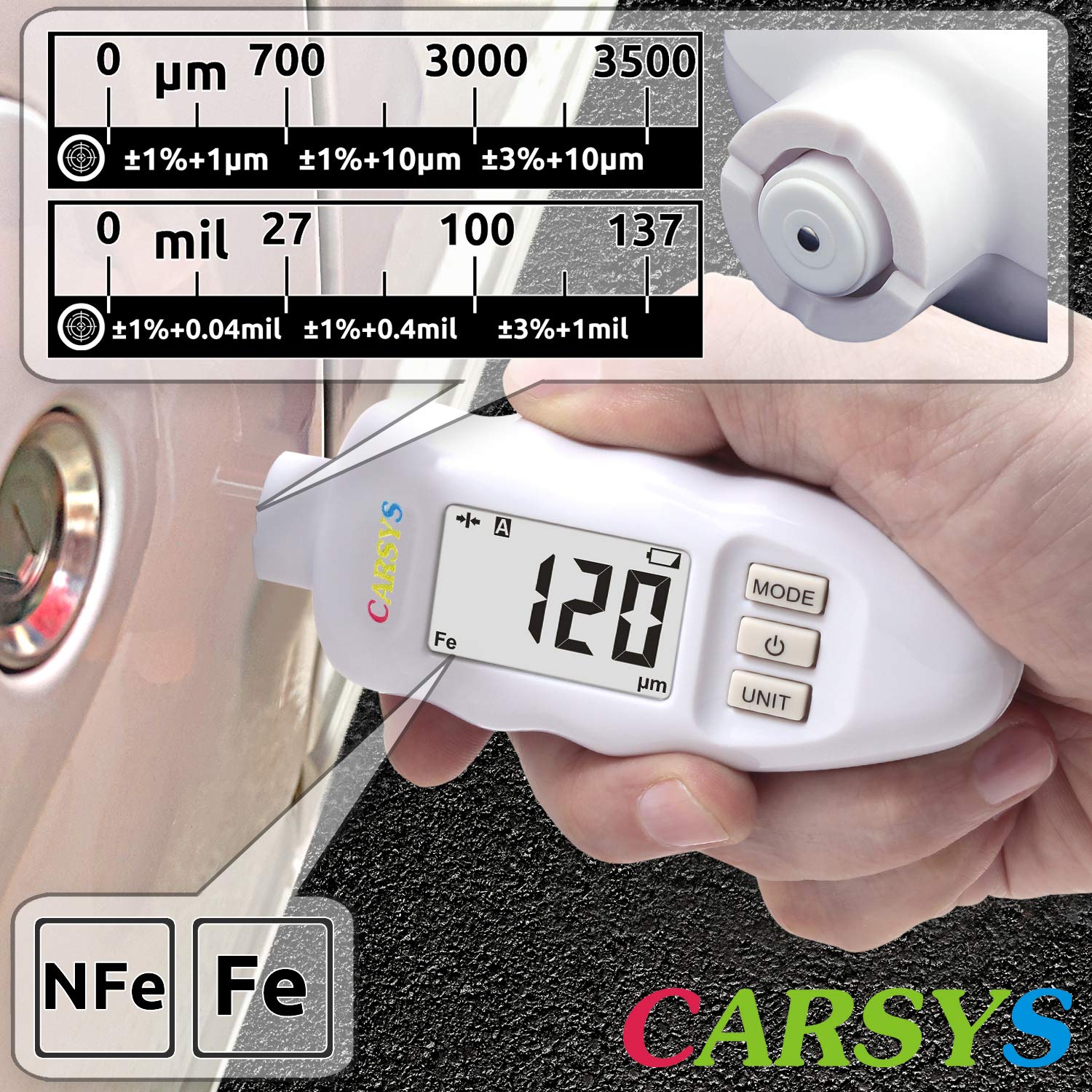

- Measurement range: 0-137 mils
- Resolution: 0.01-0.1-0.5 mils.
- Accuracy (0-28 mil): ± 1% + 0.04 mil.
- Accuracy (28-99 mil): ± 1% + 0.4 mil.
- Measurement units: mm / microns / mil.
- Wide operating temperature range -13 to 104 F.

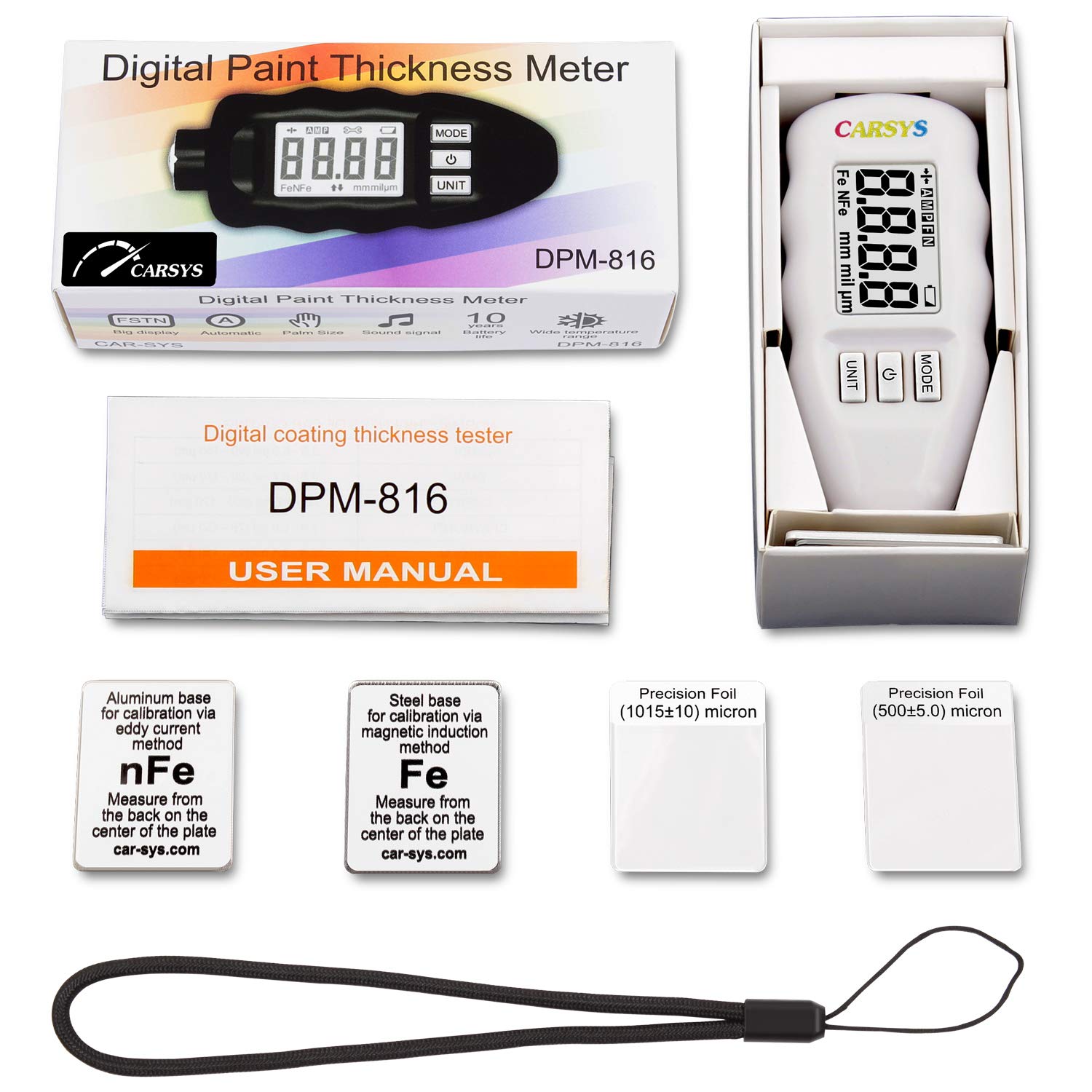

This set includes:
- Digital coating thickness gauge (the device).
- Aluminum and Steel calibration base.
- Calibration plates 500µm and 1000µm thick.
- User manual.
Order online right now and enjoy the most accurate Coating Thickness Gauge ever!
