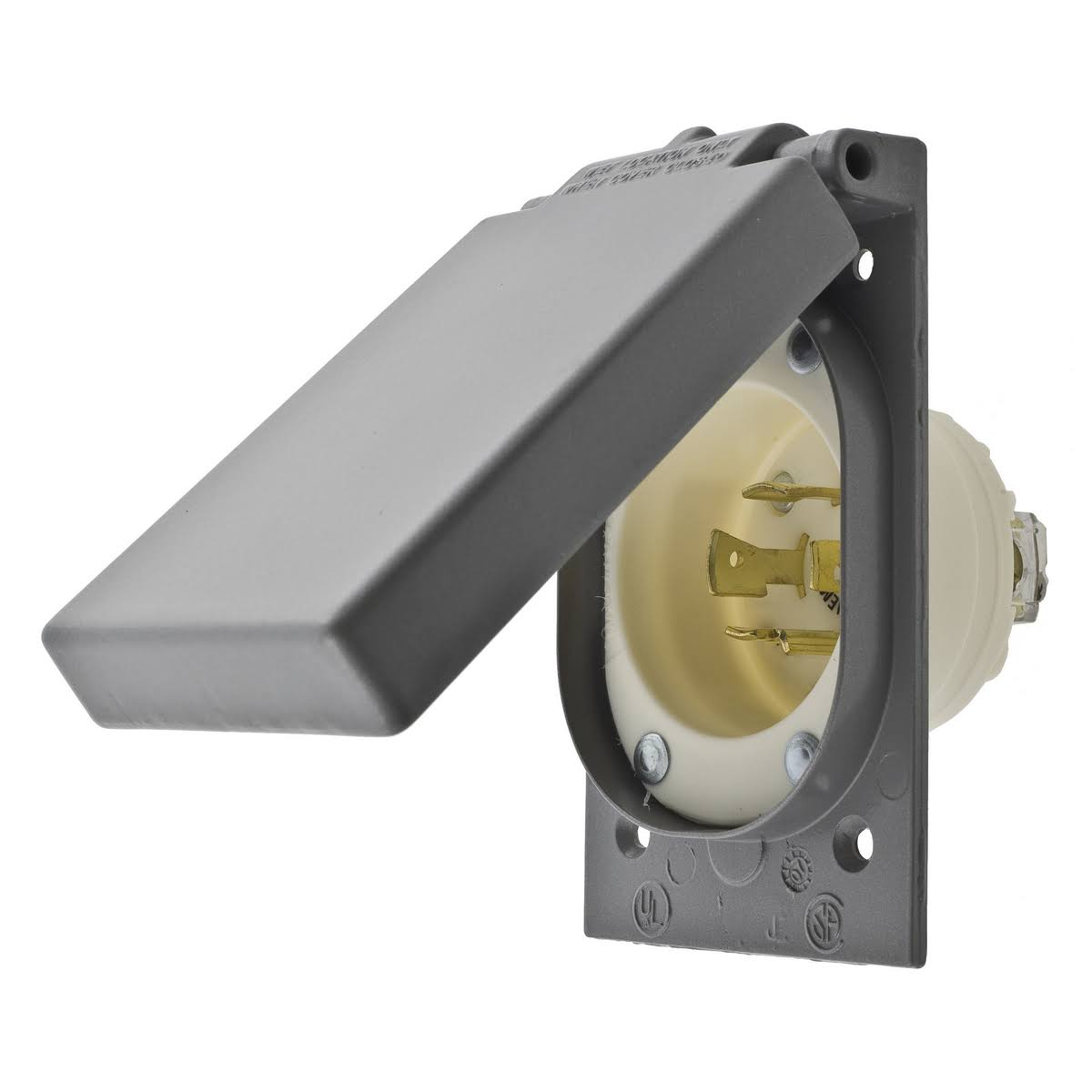

Flanged Inlet L14-20P A291
Sale price
$17.95
Regular price $69.08
Skip to product information
Construction: Mounting: FS/FDTerminal Cover: Clear Polycarbonate - Face Terminal Assembly: Impact Modified Nylon - Cover housing: Super Tough Nylon - Terminal Clamp Nut: Zinc-Plated Steel - Plug Blades: Brass, (neutral blade nickel-plated)Technical Specs: Dielectric Voltage: Withstands 3500V per UL498Maximum working Voltage: 600V AC or 250V DCCurrent Interupting: Certified for current interrupting at full rated current - Temperature rise: Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL498Terminal Identification: (X, Y Z Brass Hot) (G, Green, Grounding) (W, Silver, Neutral)Flammability: UL 94 V2 Minimum - Configuration Type: L14-20Operating Temperatures: -40 deg C to 85 deg C (continuous w/o impact)Standards: UL Standards: UL Listed to Standard 498 (Attachment Plug and Receptacles)UL Listing File: Ul Listed File #E2258- Guide #RTRTFederal Specifications: Federal Specifications WC596 (where applicable)Complies With: Complies with NEMA Standards WD-1, WD-6 and UL 498Overseas Approval: NOM, CECSA Standard: Certified to CSA Standard C222 No42M1984 (General Use Receptacles) and C222 No 1822M1987 (Industrial Locking Type, Special Use Attachment Plugs, Receptacles and Connectors) where applicable - CSA Certification File: CSA Certified File #LR16215- Guide #365-E-1
Flanged Inlet L14-20P A291
Sale price
$17.95
Regular price $69.08
Shipping calculated at checkout.
