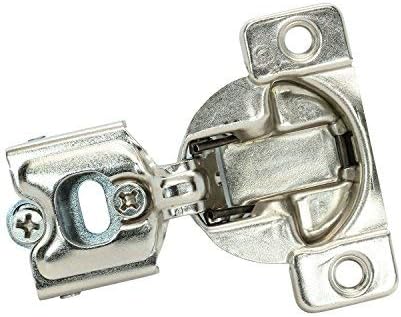

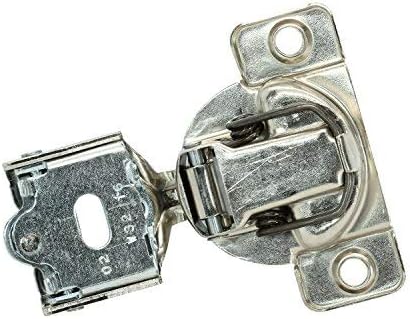

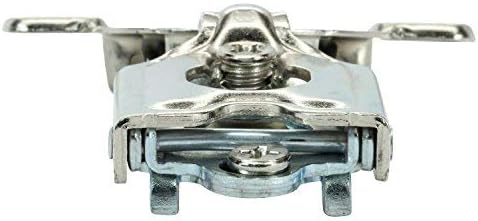

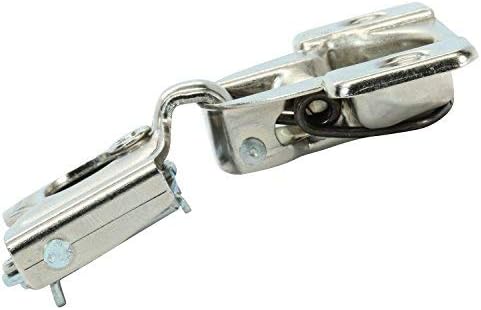

Compact Cabinet Hinge 3-Way Adjustment Pack of 2 Z48433
Sale price
$16.90
Regular price $52.04
Skip to product information
GRASS TEC 864 Self Close Cabinet Hinge 'Door will slam shut' MADE IN THE USA
3-Way Adjustable In and Out Cam Adjustment 108 Degrees Opening Angle. Screw on wrap around mount cabinet hinge Includes 2x #6 x 5/8' Wood Screws and 1x #10 x 3/4' Wood Screw
Closing Action: Self Close (Door Will Slam Shut)
1/4 in overlay self closing hinge | Hinge Cup Boring Diameter: 35mm (Recommended Drill Bit - ROKBB35BLUE )
Comes with side, height and depth adjustment to make installation a much more easier process.
Compact Cabinet Hinge 3-Way Adjustment Pack of 2 Z48433
Sale price
$16.90
Regular price $52.04
Shipping calculated at checkout.
GRASS TEC 864 Self Close Cabinet Hinge 'Door will slam shut' MADE IN THE USA
3-Way Adjustable In and Out Cam Adjustment 108 Degrees Opening Angle. Screw on wrap around mount cabinet hinge Includes 2x #6 x 5/8' Wood Screws and 1x #10 x 3/4' Wood Screw
Closing Action: Self Close (Door Will Slam Shut)
1/4 in overlay self closing hinge | Hinge Cup Boring Diameter: 35mm (Recommended Drill Bit - ROKBB35BLUE )
Comes with side, height and depth adjustment to make installation a much more easier process.
MADE IN THE USA
One piece hinge and base plate combination
Overlay: 1/4'
Installation: Screw On
Cabinet Door Closing Type: Self Close (Door will slam shut)
3 dimensional adjustment
11mm (7/16') cup drilling depth
Hinge Cup Boring Diameter: 35mm
Hinge Cup Boring Distance:2.5mm(3/32')
Drilling Hinge Screw Hole Pattern: 42mm
Hinge Door Opening Angle: 108 Degrees
Front locating tabs position hinge on face frame
Cam side adjustment: +/- 1.5mm(1/16')
Cam depth adjustment: +2.5mm(7/64'), -0.5mm(1/32')
Height adjustment at mounting screw: +/-2mm(3/32')
Mounting Type: Wrap Mount
Mounting Screws: Includes 2x #6 x 5/8' Wood
Screws and 1x #10 x 3/4' Wood Screw
